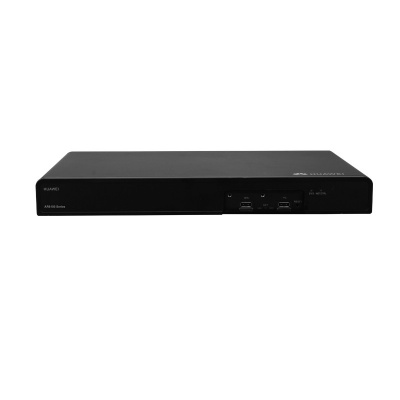

Маршрутизатор Huawei AR6120

①

USB interface 3.0 (host)

③

RST button

②

USB interface 2.0 (host)

①

WAN interface: one 10GE optical interface

⑥

AC power jack

②

Console interface

⑦

LAN interfaces: eight GE electrical interfaces

③

Two SIC slots

⑧

WAN interface: one GE electrical interface

④

Ground point

⑨

WAN interface: GE combo interface

⑤

Jack for power cable locking strap

Models

Descriptions

AR0MWMF9TT00

8-Port 100M-RJ45+1-Port 1000M-RJ45-L2/L3 Ethernet Electrical Interface Card

AR-9ES2-W

8 Port 100BASE-RJ45 and 1 Port 1000BASE- RJ45 L2 Ethernet Interface Card

AR01WEG4SB

4-Port 1000BASE-SFP-L2 Ethernet Interface Card

AR-4ES2G-S

4-Port 1000BASE-RJ45 L2 Ethernet Interface Card

AR0MSEG1CA00

1-Port GE Combo WAN Interface Card

AR-4GECS-W

4-Port GE Combo WAN Interface Card

AR0MSEF2TA00

2-Port FE WAN Interface Card

AR01WEG4TA

4-Port 1000BASE-RJ45-L3 Ethernet WAN Interface Card

AR01WEG4SA

4-Port 1000BASE-SFP-L3 Ethernet WAN Interface Card

AR0MSDME1A00

1-Port Channelized E1/T1/PRI/VE1 Multiflex Trunk Interface Card

AR0MSDME2A00

2-Port Channelized E1/T1/PRI/VE1 Multiflex Trunk Interface Card

AR01WDCE4A

4-Port Channelized E1/PRI Multiflex Trunk Interface Card

AR01WDCE8A

8-Port Channelized E1/PRI Multiflex Trunk Interface Card

AR0MSDE11A00

1-Port Fractional Channelized E1/T1 WAN Interface Card

AR0MSDE12A00

2-Port Fractional Channelized E1/T1 WAN Interface Card

AR01WDFE4A

4-Port Fractional Channelized E1 WAN Interface Card

AR01WDFE8A

8-Port Fractional Channelized E1 WAN Interface Card

AR01WAE14A

4-Port E1 ATM IMA Interface Card

AR-1E3T3M-W

1-Port Channelized/Unchannelized E3/T3 WAN Interface Card

AR0MSDSA1A00

1-Port Synchronous/Asynchronous WAN Interface Card

AR0MSDSA2A00

2-Port Synchronous/Asynchronous WAN Interface Card

AR-8SA-W

8-port synchronous/asynchronous WAN interface card

AR0MWDAS8A01

8-Port-Asynchronous WAN Interface Card

AR01SDGW1A

3G WCDMA HSPA+7 Interface Card

AR-1LTE-L-S

WCDMA LTE Interface Card

AR0MSDS1XA00

1-Port ISDN S/T WAN Interface Card

AR0MSLA1XA01

1-Port ADSL2+ ANNEX A/M WAN Interface Module

AR0MSLS1XA00

1-Port 4 Pair G.SHDSL WAN Interface Card

AR01SLV1XA

1-Port VDSL2 over POTS WAN Interface card

AR0MSOPP2A00

1-Port GPON/EPON Dual-Mode Interface Card

eSFP-FE-LX-SM1310

Optical Transceiver,eSFP,100M/155M,Single-mode Module(1310nm,15km,LC)

S-SFP-FE-LH40-SM1310

Optical Transceiver,eSFP,FE,Single-mode Module(1310nm,40km,LC)

S-SFP-FE-LH80-SM1550

Optical Transceiver,eSFP,FE,Single-mode Module(1550nm,80km,LC)

SFP-FE-LX-SM1310-BIDI

Optical Transceiver,eSFP,FE,BIDI Single-mode Module(TX1310/RX1550,15km,LC)

SFP-FE-LX-SM1550-BIDI

Optical Transceiver,eSFP,FE,BIDI Single-mode Module(TX1550/RX1310,15km,LC)

eSFP-GE-SX-MM850

Optical Transceiver,eSFP,GE,Multi-mode Module(850nm,0.55km,LC)

SFP-GE-LX-SM1310

Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,10km,LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,40km,LC)

S-SFP-GE-LH40-SM1550

Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,40km,LC)

S-SFP-GE-LH80-SM1550

Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,80km,LC)

SFP-GE-LX-SM1310-BIDI

Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,10km,LC)

SFP-GE-LX-SM1490-BIDI

Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,10km,LC)

LE2MGSC40DE0

Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,40km,LC)

LE2MGSC40ED0

Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,40km,LC)

OMXD30000

Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC)

OSX010000

Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC)

OSX040N01

Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,40km,LC)

Product Code

AR6120

AR6140-9G-2AC

AR6280

AR6300

Processor

4-Core

4-Core

16-Core

16-Core

Forwarding

Performance (LAN - >

WAN + WAN - > LAN,

NAT + ACL + QoS,

IMIX)

2 Gbps

2 Gbps

SRU-400H: 10 Gbps

SRU-600H: 12 Gbps

SRU-400H: 10 Gbps

SRU-600H: 12 Gbps

IPsec performance

(IMIX)

2 Gbps

2 Gbps

SRU-400H: 6 Gbps

SRU-600H: 7.5 Gbps

SRU-400H: 6 Gbps

SRU-600H: 7.5 Gbps

Fixed LAN ports

8 x GE RJ45 (can be configured as WAN)

2 x GE SFP + 3 x GE RJ45 (can be

configured as WAN)

\

\

SIC slots

2

4

4

4

WSIC slots

0 (default)/1

(maximum)

0 (default)/2

(maximum)

2 (default)/4 (maximum)

2 (default)/4

(maximum)

XSIC slots

\

\

2(default)/4 (maximum)

4 (default)/6

(maximum)

USB port

1 x USB 3.0

(compatible with USB 2.0) + 1 x USB 2.0

1 x USB3.0

(compatible with USB 2.0)

1*USB2.0

1*USB2.0

Auxiliary or console port

1 x RJ45 console port

1 x RJ45 console port

1 x RJ45 console port

1 x RJ45 console port

Memory

2 GB

2 GB

SRU-400H: 8 GB

SRU-600H: 16 GB

SRU-400H: 8 GB

SRU-600H: 16 GB

Flash memory

1 GB/ 512MB

1 GB

SRU-400H: 2 GB

SRU-600H: 4 GB

SRU-400H: 2 GB

SRU-600H: 4 GB

Router dimensions,

With no mounting

bracket installed (H x W x D)

44.5mm × 390mm × 232.5mm

44.5 mm x 442 mm x 420 mm

88.1 mm x 442 mm x 470 mm

130.5 mm x 442 mm x 470 mm

Router dimensions,

With mounting

bracket installed (H x W x D)

44.5mm × 482.6mm × 232.5mm

44.5 mm x 482.6 mm x 572.5 mm

88.1 mm x 482.6 mm x 470 mm

130.5 mm x 482.6 mm x 470 mm
