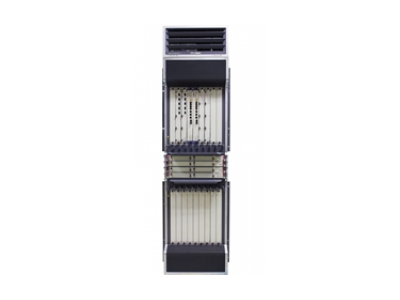

Модуль для маршрутизаторов Huawei CR5P5KBASA66

Product Code

Huawei Router - CR5P5KBASA66

Throughput

Non-blocking switch fabric, multi-chassis support

Maximum system capacity:

819 Tbit/s, 64 chassis (400G)

Port Capacity

15 Tbit/s, single chassis (480G)

Slots/CLC

16 slots/single chassis

Interface Types

GE, 10 GE, 155M POS, 622M POS, 2.5G POS, 10G POS, 40G POS, 40 GE, 100 GE, etc.

Routing Protocol

IPv4 static routing, RIP, OSPF, IS-IS, BGP-4, PIM, MSDP, and MBGP

IPv6

IPv4 & IPv6 dual stack; IPv6 line-speed forwarding based on hardware

IPv6 static route, BGP4+, RIPng, OSPFv3, and IS-ISv6

IPv6 peer discovery, PMTU discovery, TCP6, ping IPv6, Tracert IPv6, socket IPv6, TFTP IPv6 client, IPv6 policy route, IPv6 NetStream, etc.

Manually configured tunnel, automatic tunnel, and 6to4 tunnel

High Availability

1:1 standby for MPU, 3+1 backup switching fabric, 8+8 backup for power supply, and 2+2 backup for fan

Hot-swappable based on state, Non-Stop Forwarding (NSF) and Non-Stop Routing (NSR)

BFD for VRRP/BGP/OSPF/ISIS/TE LSP/LDP/LSP/TE and PIM

IGP/BGP/Multicast Fast Convergence

IP/LDP/BGP/TE Fast Re-Route (FRR), BGP/ISIS Auto FRR, ETH Trunk, and IP Trunk

In-Service Software Upgrade (ISSU), automatic fault diagnosis function, and hot patching

Configuration management

Bi-direction compatible

Model

Description

FE-SFP Optical Transceiver

SFP-FE-SX-MM1310

SFP,100M/155M,Multi-mode Module(1310nm,2km,LC)

eSFP-FE-LX-SM1310

eSFP,100M/155M,Single-mode Module(1310nm,15km,LC)

S-SFP-FE-LH40-SM1310

eSFP,FE,Single-mode Module(1310nm,40km,LC)

GE-SFP Optical Transceiver

SFP-1000BaseT

SFP,GE,Electrical Interface Module(100m,RJ45)

eSFP-GE-SX-MM850

eSFP,GE,Multi-mode Module(850nm,0.55km,LC)

SFP-GE-LX-SM1310

eSFP,GE,Single-mode Module(1310nm,10km,LC)

S-SFP-GE-LH40-SM1310

eSFP,GE,Single-mode Module(1310nm,40km,LC)

S-SFP-GE-LH40-SM1550

eSFP,GE,Single-mode Module(1550nm,40km,LC)
