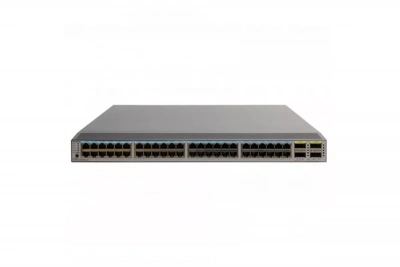

Коммутатор Huawei CE6850-EI-B00

①

10GE SFP+ Ethernet optical ports

②

40GE QSFP+ Ethernet optical ports

①

Power supply slot 1

②

Fan slot 1

③

Console port

④

Bar code label

⑤

Fan slot 2

⑥

Power supply slot 2

⑦

USB port

⑧

ETH management port

Model

Description

AC power module

PAC-350WA-F

350W AC Power Module(Front to Back,Power panel side intake)

PAC-350WA-B

350W AC Power Module(Back to Front,Power panel side exhaust)

GE-SFP Optical Transceiver

eSFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC)

SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC)

S-SFP-GE-LH40-SM1550

Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC)

10G-SFP+ Optical Transceiver

SFP-10G-USR

10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC)

OMXD30000

Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC)

40GE QSFP+ optical transceiver

QSFP-40G-iSR4

40GBase-iSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.15km,MPO)(Connect to four SFP+ Optical Transceiver)

QSFP-40G-LR4

40GBase-LR4 Optical Transceiver,QSFP+,40GE,Single-mode Module(1310nm,10km,LC)

GE Copper Transceiver

SFP-1000BaseT

Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45)

FAN-40EA

FAN-40EA-F

Fan box(EA,Front to Back,FAN panel side intake)

FAN-40EA-B

Fan box(EA,Back to Front,FAN panel side exhaust)

Product Code

CE6850-EI-B00

CE6851-48S6Q-HI-B

10G Base-T Ports

0

0

SFP+ Ports

48

48

FC Ports

0

0

QSFP+ Ports

4

6

Switching Capacity

1.28 Tbit/s

1.44 Tbit/s

Forwarding Rate

960 Mpps

1,080 Mpps

Maximum power consumption

272 W

245W

Typical power consumption

180 W

145 W
