----Коммутатор Huawei ET1BS12712S0

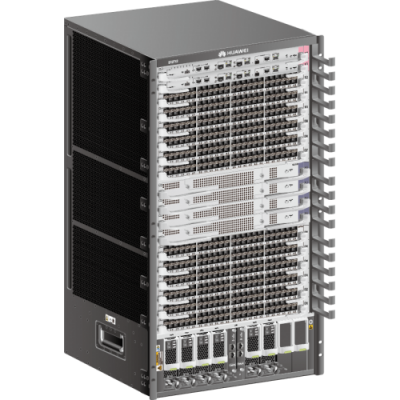

Коммутатор Huawei ET1BS12712S0

ET1BS12712S0

Part number: ET1BS12712S0

ID: 19360

403 482 руб./шт

Цена указана с НДС

Цена на сайте носит ознакомительный характер. Чтобы узнать актуальную стоимость, отправьте ID или парт-номер оборудования на электронную почту sale@hwstore.ru.

Срок поставки: 14-21 день

Связаться с менеджером

- +

В корзину

Купить в 1 клик

Контакты

+7 (930) 035-28-41

sale@hwstore.ru

Связаться с менеджером Подробнее о доставке

100% лучшая цена

бесплатная доставка по России

любая форма оплаты

сервисный центр

расширенная гарантия (NBD)

Технические характеристики Коммутатор Huawei ET1BS12712S0

ET1BS12712S0 is the Huawei S12712 Switch assembly chassis, including 12 slots.

Quick Specs

Product Details

Figure 2 shows the front structure of the ET1BS12712S0.

Note:

①	Two MPUs
②	Twelve service cards, including: ·Open Service Platform Unit ·1000M Interface Card ·GE/10GE Interface Card ·10GE Interface Card ·40GE Interface Card ·100GE Interface Card
③	Four SFUs
④	A pair of mounting brackets
⑤	Six power modules
⑥	Two CMUs
⑦	Front ESD jack
⑧	Cable management frames

·The ET1BS12712S0 is just a Chassis that it doesn't provide cards, modules or units. The cards, modules or units must be purchased separately.
·The mounting brackets are used to secure the chassis in a cabinet.
·The ground terminal of an ESD wrist strap can be inserted in this jack. The ESD wrist strap can provide ESD protection when the chassis is reliably grounded.
·The cable management frames separate cables on different cards and help route cables orderly.

Figure 3 shows the rear structure of the ET1BS12712S0.

Note:

①	Five Fan Modules
②	Rear ESD jack
③	JG ground terminal
④	A pair of handles
⑤	Air filter

·The ground terminal of an ESD wrist strap can be inserted in this jack. The ESD wrist strap can provide ESD protection when the chassis is reliably grounded.
·The handles are only used for this purpose: After you lift the chassis onto the guide rails or tray, grasp the handles to drag the chassis into the cabinet.
·The air filter prevents dust from entering the chassis.

The Modules, Cards

Table 2 shows the recommended elements for the ET1BS12712S0.

Model	Description
FE-SFP optical transceiver
SFP-FE-SX-MM1310	Optical Transceiver, SFP, 100M/155M, Multi-mode Module(1310nm, 2km, LC)
eSFP-FE-LX-SM1310	Optical Transceiver, eSFP, 100M/155M, Single-mode Module(1310nm, 15km, LC)
S-SFP-FE-LH40-SM1310	Optical Transceiver, eSFP, FE, Single-mode Module(1310nm, 40km, LC)
GE-SFP optical transceiver
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC)
10G-SFP+ optical transceiver
SFP-10G-USR	10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC)
OMXD30000	Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC)
OSX010000	Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm, 10km, LC)
40GE CFP optical transceiver
CFP-40G-SR4	High Speed Transceiver CFP-40G-SR4,CFP,40G,Multimode Module(850nm,4*10G,0.1km,MPO)
CFP-40G-LR4	High Speed Transceiver,CFP,40G,Single-mode Module(1310nm band,41.25G,10km,stright LC)
CFP-40G-ER4	High Speed Transceiver,CFP,40G,Single-mode Module(1310nm band,41.25G,40km,stright LC)
40GE QSFP+ optical transceiver
QSFP-40G-eSR4	40GBase-eSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.3km,MPO)(Connect to four SFP+ Optical Transceiver)
QSFP-40G-ER4	40GBase-ER4 Optical Transceiver,QSFP+,40G,Single-mode Module (1310nm,40km,LC)
100GE CFP optical transceiver
CFP-100G-SR10	High Speed Transceiver,CFP,100G,Multimode Module(850nm,10*10G,0.1km,MPO)
CFP-100G-LR4	CFP, 100G, Single-mode Module(1310nm band,4*25G,10km,stright LC)
CFP-100G-ER4	High Speed Transceiver,CFP,100G,Single-mode Module(1310nm band,4*25G,40km,stright LC)
GE copper transceiver
SFP-1000BaseT	Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45)
100GE interface card
ET1D2C02FEE0	2-Port 100GBASE-X Interface Card(EE,CFP) ET1D2C02FEE0series)
10GE interface card
ET1D2X32SSC0	32-Port 10GBASE-X Interface Card(SC,SFP+)
ET1D2X12SSA0	12-Port 10GBASE-X Interface Card(SA,SFP+)
40GE interface card
ET1D2L08QSC0	8-Port 40GBASE-X Interface Card(SC,QSFP+)
ET1D2L02QSC0	2-Port 40GBASE-X Interface Card(SC,QSFP+)
Centralized monitoring unit
EH1D200CMU00	Centralized Monitoring Board
Cluster switching system unit
EH1D2VS08000	8-Port 10G Cluster Switching System Service Unit (SFP+)
Firewall module
ET1D2FW00S02	NGFW Module C,with HW General Security Platform Software
ET1D2FW00S01	NGFW Module B,with HW General Security Platform Software
GE/10GE interface card
ET1D2S08SX1E	8-Port 10GBASE-X and 8-Port 100/1000BASE-X and 8-Port 10/100/1000BASE-T Combo Interface Card(X1E,RJ45/SFP/SFP+)
ET1D2S04SX1E	4-Port 10GBASE-X and 24-Port 100/1000BASE-X and 8-Port 10/100/1000BASE-T Combo Interface Card(X1E,RJ45/SFP/SFP+)
Intrusion prevention system module
ET1D2IPS0S00	IPS Module A,with HW General Security Platform Software
Main processing unit
ET1D2MPUA000	S12708/S12712,Main Processing Unit A(Optional clock)
Switch fabric unit
ET1D2SFUD000	S12708/S12712,Switch Fabric Unit D
ET1D2SFUA000	S12708/S12712,Switch Fabric Unit A
Wireless access controller unit
ACU2	WLAN ACU2 Access Controller Unit(128 AP Control Resource Included)
GE interface card
ET1D2T36SEA0	36-Port 10/100/1000BASE-T and 12-Port 100/1000BASE-X Interface Card(EA,RJ45/SFP)
ET1D2G48SX1E	48-Port 100/1000BASE-X Interface Card(X1E,SFP)

Compare to Similar Items

Table 3 shows the comparison of ET1BS12712S0 and ET1BS12708S0.

Product Code	ET1BS12712S0	ET1BS12708S0
Description	Huawei S12712 Switch assembly chassis	Huawei S12708 Switch assembly chassis
Packet Forwarding Rates	9,120 Mpps; 12,960 Mpps(With Necessary Plug-ins)	6,240 Mpps; 9,120 Mpps(With Necessary Plug-ins)
Switching Capacity	17.44 Tbit/s; 44.96 Tbit/s(With Necessary Plug-ins)	12.32 Tbit/s; 32.16 Tbit/s(With Necessary Plug-ins)
MPU Slots	2	2
SFU Slots	4	4
Service Card Slots	12	8
Maximum Power Consumption of the Entire Equipment	≤ 6,600W	≤ 4,400W
Weight	63 kg	42 kg
