Технические характеристики Коммутатор Huawei S1700-28GFR-4P-AC
The Huawei S1700-28GFR-4P-AC is web/SNMP-based switch with 28 ports including 4 Gig SFP. SNMP-based S1700 models allow the use of a SNMP-based NMS for centralized configuration and management. It is green, energy-saving and belongs to the Ethernet access switch. SNMP-managed switch supports MSTP examples up to eight, making the networks smooth. With rich safety features, it can prevent attacks from hackers and virus in order to build secure, reliable, high-performance and multi-service networks for small- and medium-size enterprises.
Quick Specs

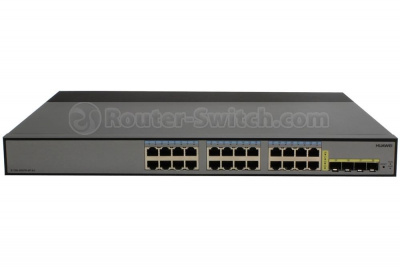

Figure 1 shows the appearance of Huawei S1700-28GFR-4P-AC switch.
Product Code |
S1700-28GFR-4P-AC |
Type |
Web/ SNMP-based Switch |
Downlink Ports |
24 x 10/100/1000 ports |
Uplink Ports |
4 Gig SFP |
MAC Address Table Size |
8K MAC |
Voltage Required |
100V to 240V AC, 50 Hz/60 HZ |
Power Consumption Operational |
<30 Watt |
Forwarding Performance |
78 Mpps |
Switching Capacity |
104 Gbit/s |
Dimensions (W x D x H) |
442 mm x 220 mm x 43.6 mm |
EEE |
Supported |
Product Details
Figure 2 shows the front panel of Huawei S1700-28GFR-4P-AC switch.
Note:
① |
Ethernet electrical port indicators |
④ |
1000BASE-X port |
② |
10/100/1000BASE-T port |
⑤ |
Reset button |
③ |
1000BASE-X port indicator |
⑥ |
Power/System status indicator |
*Reset button: This button is used to reset the switch. Resetting the switch will cause s ervice interruption. Exercise caution when you press the Reset button. To restore the factory settings, hold down the button for at least 6 seconds. To reset the system, press the button.
*An S1700-28GFR-2T2P-AC has a built-in AC power supply, which provides power for the entire switch.
Table 2 shows the LED Indicators description.
Indicator |
Status |
Description |
Power indicator |
Steady green |
The switch is powered on |
Off |
The switch is powered off. |
|
System status indicator |
Steady green |
The switch is starting or working abnormally. |
Blinking green |
The switch is working properly. |
|
Off |
The switch is not started. |
|
10/100/1000BASE-T Ethernet port indicator |
Steady green |
The port is connected at the rate of 1000 Mbit/s |
Blinking green |
The port is connected at the rate of 1000 Mbit/s and transmitting data |
|
Steady yellow |
The port is connected at the rate of 10/100 Mbit/s. |
|
Blinking yellow |
The port is connected at the rate of 10/100 Mbit/s and transmitting data. |
|
Off |
The port is not connected. |
|
GE1-GE4 optical port indicator |
Steady green |
The port is connected at the rate of 1000 Mbit/s. |
Blinking green |
The port is connected at the rate of 1000 Mbit/s and transmitting data. |
|
Off |
The port is not connected. |
Figure 3 shows the back panel of Huawei S1700-28GFR-4P-AC switch.
Note:
① |
Ground screw |
② |
AC power jack |
Recommended Modules
Port |
Optical Module |
Description |
1000BASE-X Ethernet port |
eSFP-GE-SX-MM850 |
Optical Transceiver,eSFP,GE,Multi-mode Module(850nm,0.55km,LC) |
SFP-GE-LX-SM1310 |
Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,10km,LC) |
|
S-SFP-GE-LH40-SM1310 |
Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,40km,LC) |
|
S-SFP-GE-LH40-SM1550 |
Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,40km,LC) |
Compare with Similar Item
Table 3 shows the comparison between S1700-28FR-2T2P-AC / S1728GWR-4P and S1700-28GFR-4P-AC.
Model |
S1728GWR-4P |
S1700-28FR-2T2P-AC |
S1700-28GFR-4P-AC |
Type |
Web-managed Switch |
Web/SNMP-based Switch |
Web/SNMP-based Switch |
Downlink Ports |
24 Ethernet 10/100/1,000 ports |
24 Ethernet 10/100 ports |
24 Ethernet 10/100/1,000 ports |
Uplink Ports |
4 Gig SFP |
2 Ethernet 10/100/1000 ports and 2 Gig SFP |
4 Gig SFP |
MAC Address Table |
8K MAC |
8K MAC |
8K MAC |
Dimensions (W x D x H) |
442 mm x 220 mm x 43.6 mm |
442 mm x 220 mm x 43.6 mm |
442 mm x 220 mm x 43.6 mm |
Power consumption |
< 15W |
<25W |
<30W |
EEE |
Supported |
NA |
Supported |
