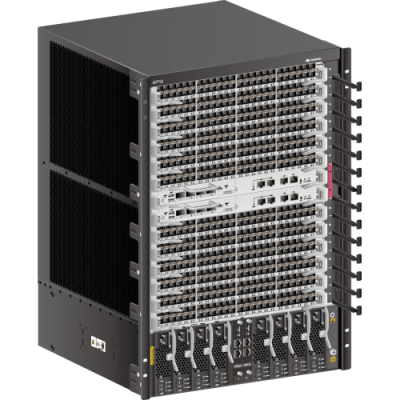

Коммутатор Huawei ES0B017712P0

①

Twelve service cards, including:

• Open Service Platform Unit
• 100M Interface Card
• 1000M Interface Card
• GE/10GE Interface Card
• 10GE Interface Card
• 40GE Interface Card
• 100GE Interface Card

②

Two MPUs

③

 A pair of mounting brackets

④

Four power modules

⑤

Two EH1D200CMU00-Centralized Monitoring Unit

⑥

Four PoE power modules

⑦

Ground screw

⑧

Front ESD jack

⑨

Cable management frames

①

Four Fan module

②

Rear ESD jack

③

JG ground terminal

④

Air filter

⑤

A pair of removable handles

Model

Description

FE-SFP optical transceiver

SFP-FE-SX-MM1310

Optical Transceiver, SFP, 100M/155M, Multi-mode Module(1310nm, 2km, LC)

eSFP-FE-LX-SM1310

Optical Transceiver, eSFP, 100M/155M, Single-mode Module(1310nm, 15km, LC)

S-SFP-FE-LH40-SM1310

Optical Transceiver, eSFP, FE, Single-mode Module(1310nm, 40km, LC)

GE-SFP optical transceiver

eSFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC)

SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC)

S-SFP-GE-LH40-SM1550

Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC)

10G-SFP+ optical transceiver

SFP-10G-USR

10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC)

OMXD30000

Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC)

OSX010000

Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm, 10km, LC)

40GE CFP optical transceiver

CFP-40G-SR4

High Speed Transceiver CFP-40G-SR4,CFP,40G,Multimode Module(850nm,4*10G,0.1km,MPO)

CFP-40G-LR4

High Speed Transceiver,CFP,40G,Single-mode Module(1310nm band,41.25G,10km,stright LC)

CFP-40G-ER4

High Speed Transceiver,CFP,40G,Single-mode Module(1310nm band,41.25G,40km,stright LC)

40GE QSFP+ optical transceiver

QSFP-40G-eSR4

40GBase-eSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.3km,MPO)(Connect to four SFP+ Optical Transceiver)

QSFP-40G-ER4

40GBase-ER4 Optical Transceiver,QSFP+,40G,Single-mode Module (1310nm,40km,LC)

100GE CFP optical transceiver

CFP-100G-SR10

High Speed Transceiver,CFP,100G,Multimode Module(850nm,10*10G,0.1km,MPO)

CFP-100G-LR4

CFP, 100G, Single-mode Module(1310nm band,4*25G,10km,stright LC)

CFP-100G-ER4

High Speed Transceiver,CFP,100G,Single-mode Module(1310nm band,4*25G,40km,stright LC)

GE copper transceiver

SFP-1000BaseT

Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45)

100GE interface card

ET1D2C02FEE0

2-Port 100GBASE-X Interface Card(EE,CFP) ET1D2C02FEE0series)

10GE interface card

ET1D2X32SSC0

32-Port 10GBASE-X Interface Card(SC,SFP+)

ET1D2X12SSA0

12-Port 10GBASE-X Interface Card(SA,SFP+)

40GE interface card

ET1D2L08QSC0

8-Port 40GBASE-X Interface Card(SC,QSFP+)

ET1D2L02QSC0

2-Port 40GBASE-X Interface Card(SC,QSFP+)

Centralized monitoring unit

EH1D200CMU00

Centralized Monitoring Board

Cluster switching system unit

EH1D2VS08000

8-Port 10G Cluster Switching System Service Unit (SFP+)

Firewall module

ET1D2FW00S02

NGFW Module C,with HW General Security Platform Software

ET1D2FW00S01

NGFW Module B,with HW General Security Platform Software

GE/10GE interface card

ET1D2S08SX1E

8-Port 10GBASE-X and 8-Port 100/1000BASE-X and 8-Port 10/100/1000BASE-T Combo Interface Card(X1E,RJ45/SFP/SFP+)

ET1D2S04SX1E

4-Port 10GBASE-X and 24-Port 100/1000BASE-X and 8-Port 10/100/1000BASE-T Combo Interface Card(X1E,RJ45/SFP/SFP+)

Intrusion prevention system module

ET1D2IPS0S00

IPS Module A,with HW General Security Platform Software

Main processing unit

ET1D2MPUA000

S12708/S12712,Main Processing Unit A(Optional clock)

Switch fabric unit

ET1D2SFUD000

S12708/S12712,Switch Fabric Unit D

ET1D2SFUA000

S12708/S12712,Switch Fabric Unit A

Wireless access controller unit

ACU2

WLAN ACU2 Access Controller Unit(128 AP Control Resource Included)

GE interface card

ET1D2T36SEA0

36-Port 10/100/1000BASE-T and 12-Port 100/1000BASE-X Interface Card(EA,RJ45/SFP)

ET1D2G48SX1E

48-Port 100/1000BASE-X Interface Card(X1E,SFP)

Product Code

ES0B017712P0

ES0B00770300

Forwarding Performance

2,880 Mpps

1,440 Mpps

Switching Capacity

3.84 Tbit/s

1.92 Tbit/s

Service Slots

12

3

Redundancy Design

Supervisors, Power modules, CMUs, Fans trays

Supervisors, Power modules, CMUs, Fans trays

MPU Slots

2

2

LPU slots

12

3

System power supply slots

4

2

Fan slots

4

1

PoE power supply slots

4

1

Maximum PoE Power

8,800W

2,200W

Maximum power consumption (fully loaded)

4200 W

1000 W
