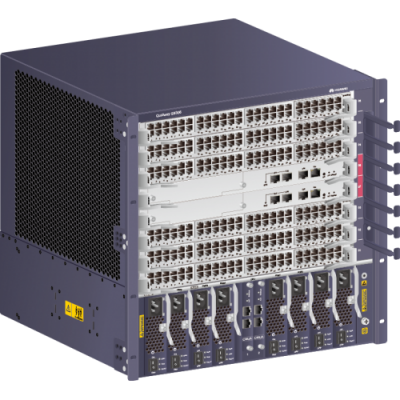

Коммутатор Huawei LE0KS9306
100% лучшая цена
бесплатная доставка по России
любая форма оплаты
сервисный центр
расширенная гарантия (NBD)
Технические характеристики Коммутатор Huawei LE0KS9306
S9306 is one of the S9300 series switches(S9300 for short). And the LE0KS9306 is the Huawei S9306 Assembly Chassis. The S9300 series switches are next-generation high-end terabit routing switches, developed by Huawei and designed for multiservice convergence. The S9300 design is based on Huawei's intelligent multilayer switching technology to provide high-definition video services, large-capacity wireless networks, elastic cloud computing, IPv6-capable hardware, and integrated security, in addition to high-performance L2/L3 switching services. The S9300 is a highly extensible and reliable platform, integrating switching and routing functions to facilitate end-to-end integrated networks. It is widely used in WANs, MANs, campus networks, and data centers to help enterprises build application-oriented networks.
Quick Specs
Product Details
Figure 2 shows the S9306 chassis structure (front view).
Note:
① |
Six service cards, including:
|
② |
Two MPUs |
③ |
A pair of mounting brackets |
④ |
Four power modules |
⑤ |
Two LE0DCMUA0000-Centralized Monitoring Unit |
⑥ |
Four PoE power modules |
⑦ |
Ground screw |
⑧ |
Front ESD jack |
⑨ |
Cable management frames |
Figure 3 shows S9306 chassis structure (rear view).
Note:
① |
Two Fan Module |
② |
Rear ESD jack |
③ |
Air filter |
④ |
A pair of removable handles |
The Modules, Cards
Table 2 shows the recommended elements for the LE0KS9306.
Model |
Description |
FE-SFP optical transceiver |
|
SFP-FE-SX-MM1310 |
Optical Transceiver, SFP, 100M/155M, Multi-mode Module(1310nm, 2km, LC) |
eSFP-FE-LX-SM1310 |
Optical Transceiver, eSFP, 100M/155M, Single-mode Module(1310nm, 15km, LC) |
S-SFP-FE-LH40-SM1310 |
Optical Transceiver, eSFP, FE, Single-mode Module(1310nm, 40km, LC) |
GE-SFP optical transceiver |
|
eSFP-GE-SX-MM850 |
Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC) |
SFP-GE-LX-SM1310 |
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC) |
S-SFP-GE-LH40-SM1310 |
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC) |
S-SFP-GE-LH40-SM1550 |
Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC) |
10G-SFP+ optical transceiver |
|
SFP-10G-USR |
10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC) |
OMXD30000 |
Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC) |
OSX010000 |
Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm, 10km, LC) |
40GE CFP optical transceiver |
|
CFP-40G-SR4 |
High Speed Transceiver CFP-40G-SR4,CFP,40G,Multimode Module(850nm,4*10G,0.1km,MPO) |
CFP-40G-LR4 |
High Speed Transceiver,CFP,40G,Single-mode Module(1310nm band,41.25G,10km,stright LC) |
CFP-40G-ER4 |
High Speed Transceiver,CFP,40G,Single-mode Module(1310nm band,41.25G,40km,stright LC) |
40GE QSFP+ optical transceiver |
|
QSFP-40G-eSR4 |
40GBase-eSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.3km,MPO)(Connect to four SFP+ Optical Transceiver) |
QSFP-40G-ER4 |
40GBase-ER4 Optical Transceiver,QSFP+,40G,Single-mode Module (1310nm,40km,LC) |
100GE CFP optical transceiver |
|
CFP-100G-SR10
|
High Speed Transceiver,CFP,100G,Multimode Module(850nm,10*10G,0.1km,MPO) |
CFP-100G-LR4 |
CFP, 100G, Single-mode Module(1310nm band,4*25G,10km,stright LC) |
CFP-100G-ER4
|
High Speed Transceiver,CFP,100G,Single-mode Module(1310nm band,4*25G,40km,stright LC) |
GE copper transceiver |
|
SFP-1000BaseT |
Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45) |
100GE interface card |
|
ET1D2C02FEE0 |
2-Port 100GBASE-X Interface Card(EE,CFP) ET1D2C02FEE0series) |
10GE interface card |
|
ET1D2X32SSC0 |
32-Port 10GBASE-X Interface Card(SC,SFP+) |
ET1D2X12SSA0 |
12-Port 10GBASE-X Interface Card(SA,SFP+) |
40GE interface card |
|
ET1D2L08QSC0
|
8-Port 40GBASE-X Interface Card(SC,QSFP+) |
ET1D2L02QSC0 |
2-Port 40GBASE-X Interface Card(SC,QSFP+) |
Centralized monitoring unit |
|
EH1D200CMU00 |
Centralized Monitoring Board |
Cluster switching system unit |
|
EH1D2VS08000 |
8-Port 10G Cluster Switching System Service Unit (SFP+) |
Firewall module |
|
ET1D2FW00S02 |
NGFW Module C,with HW General Security Platform Software |
ET1D2FW00S01 |
NGFW Module B,with HW General Security Platform Software |
GE/10GE interface card |
|
ET1D2S08SX1E |
8-Port 10GBASE-X and 8-Port 100/1000BASE-X and 8-Port 10/100/1000BASE-T Combo Interface Card(X1E,RJ45/SFP/SFP+) |
ET1D2S04SX1E |
4-Port 10GBASE-X and 24-Port 100/1000BASE-X and 8-Port 10/100/1000BASE-T Combo Interface Card(X1E,RJ45/SFP/SFP+) |
Intrusion prevention system module |
|
ET1D2IPS0S00 |
IPS Module A,with HW General Security Platform Software |
Main processing unit |
|
ET1D2MPUA000 |
S12708/S12712,Main Processing Unit A(Optional clock) |
Switch fabric unit |
|
ET1D2SFUD000 |
S12708/S12712,Switch Fabric Unit D |
ET1D2SFUA000 |
S12708/S12712,Switch Fabric Unit A |
Wireless access controller unit |
|
ACU2 |
WLAN ACU2 Access Controller Unit(128 AP Control Resource Included) |
GE interface card |
|
ET1D2T36SEA0 |
36-Port 10/100/1000BASE-T and 12-Port 100/1000BASE-X Interface Card(EA,RJ45/SFP) |
ET1D2G48SX1E |
48-Port 100/1000BASE-X Interface Card(X1E,SFP) |
Compare to Similar Items
Table 3 shows the comparison of LE0KS9306 and EH1BS9712E00.
Product Code |
LE0KS9306 |
EH1BS9712E00 |
Switching Capacity |
2 T/5.12 T |
8.64 Tbit/s or 18.56 Tbit/s |
MPU Slots |
2 |
2 |
LPU slots |
6 |
12 |
Service Slots |
6 |
12 |
Fan slots |
2 |
4 |
Power slots |
4 |
6 |
Maximum power consumption (fully loaded) |
2200 W |
4500 W |
