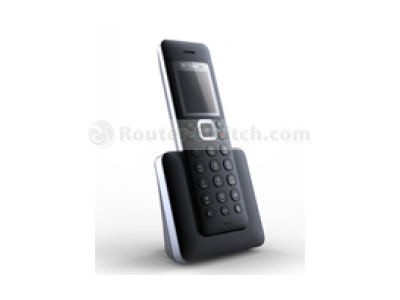

IP-телефон Huawei IP1T8801UK01

①

Earpiece

②

Color LCD

③

Right soft button used to perform the operations indicated by the text immediately over them (on the bottom of the LCD)

④

On/Off/End button

If the handset is powered off, you can press this button to power on the handset.

If the handset is powered on, you can press and hold this button to power off the handset.

In menu mode, you can press this button to cancel your operation and return to the home screen.

During a call, you can press this button to end the call.

⑤

Number buttons used to enter digits, symbols, and characters when different text-entry methods are used

⑥

Pound button used to enter the pound sign (#) or switch between text-entry methods

⑦

Mute button used to mute the microphone

⑧

Microphone

⑨

Speaker button used to enable the hands-free function

⑩

Asterisk button

You can enable or disable the keypad lock function by pressing and holding this button.

⑪

Dial button used to answer or make a call

⑫

Left soft button used to perform the operations indicated by the text immediately over them (on the bottom of the LCD)

⑬

Navigation buttons

You can use the up and down navigation buttons to highlight an item on the

screen. When editing text, you can use the left and right navigation buttons to

move the cursor.

In standby mode, you can:

·Press the up navigation button to display the missed calls.

·Press the down navigation button to display the contacts.

In a call, you can:

·Press the up navigation button to increase the volume of the sound from the earpiece.

·Press the down navigation button to decrease the volume of the sound from the earpiece.

Product Code

IP1T8801UK01

IP1T8850AU01

Description

eSpace 8801D,1.8G DECT Handset Charging cradle,Simple Chinese&English, Mode Power/England Mode Power,100-240V,50/60Hz,for PBI,black case

eSpace 8850,7 inch LCD Touch Screen,Simple Chinese&English,With USB,Wired Handset,Australia Mode Power,100-240V,50/60Hz,1.8G DECT,for Australia

Display

1.45-inch TFT LCD screen
128 x 128 pixels

·7-inch color touch screen

·800 * 480 pixels , 16.7M colors

·Supports the stylus and handwriting mode

·Support five positions from angle 0° to 35°

Power consumption

0.008–0.2 W

15 W
