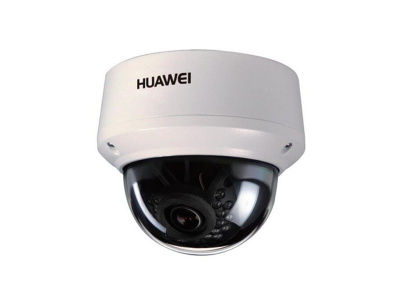

IP-камера Huawei IPC2702-VF-VP

Model Item

IPC2702-VF-VP

Image sensor

1/3" Progressive Scan CMOS

Effective pixels

1280(H)×720(V)

Minimum Illumination

Multicolor: 0.2Lux/(F1.2, AGC ON)
B/W: 0.01Lux/(F1.2, AGC ON)

Day/Night mode

Automatic ICR

Electronic shutter speed

1/5s ～ 1/50,000s

Gain control

Supported

White balance

Supported

WDR

70dB

Backlight compensation

Supported

Focal length

2.8 ~ 12mm

Aperture

Auto Iris DC drive

Video encoding format

H.264 / MJPEG

Video resolution and frame rate

50Hz: 25fps (1280×720), 25fps (640×360)
60Hz: 30fps (1280×720), 30fps (640×360)

Video bit rate

Main-Stream: 500Kbps~8Mbps
Sub-Stream: 100Kbps~6Mbps

Multiple-Stream

triple Streams

Audio encoding format

G.711a/G.711u/raw_pcm

Audio bit rate
Communication interface

64kbps
One RJ45 10/100 Base-T self-adaptive Ethernet interface and one RS-485 interface

Alarm interface
Audio interface

1-channel alarm input/1-channel alarm Output
1-channel audio input/1-channel audio Output

Analog port

BNC connector

Motion detection

Eight motion detection areas

Privacy masks

Five privacy mask areas with adjustable sizes

Network protocol
Maximum number of concurrent users

IPv4, RTSP/RTP/RTCP, TCP/UDP, HTTPS, DHCP, DNS, SFTP,DDNS, PPPoE, SMTP, and NTP
Ten users access or two channels of media streams

Security mode

User name and password authentication

Alarm linkage
Other functions

Supported
One-key reset, triple code streams, and heartbeat mechanism, 3-axis adjustment

Power supply

DC12V±10% 1A/ PoE 802.3af

Power consumption

≤5W

Operating temperature & humidity

-10ºC ~ 50ºC
< 90%(without condensation)

Net weight

0.9kg

Product Appearances (mm)

Φ130×111.5
